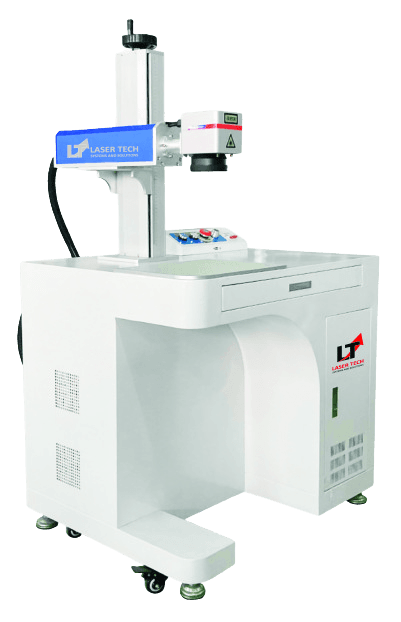

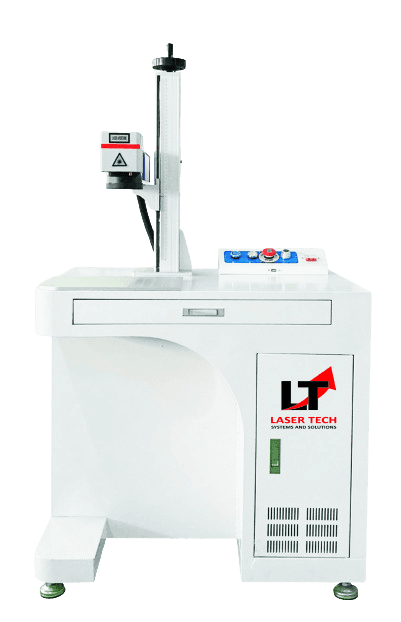

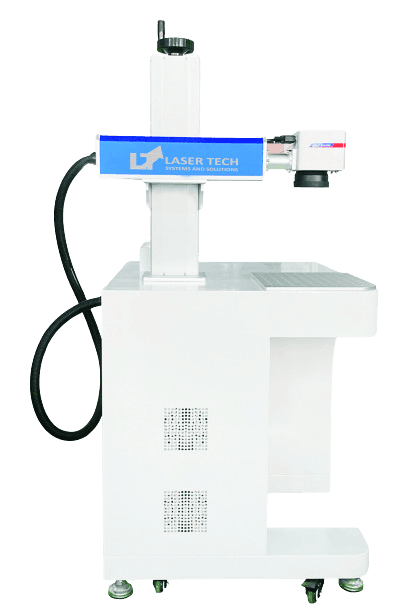

Desktop Laser Marking Machine

Desktop Laser Marking Machine

This series of machine is our company specialty which develops the optical fiber laser marking machine for the precision static marking.Uses the high- precision vibrator and software, may select and match the precision moving platform or rotating equipment to realize the precision making.

Features

  • Dynamic Depth Control

    The beam quality is incredibly high and can do marking at a higher recurrence than traditional innovation and with small detailing by having a control on the parameters. By using laser marking machine customers can perform. Scribing operations, Surface Annealing and Etching very easily.

  • High Precision Marking

    These machines offer high precision and accuracy in marking, allowing users to achieve detailed and fine markings on a variety of materials. This is crucial for applications where intricate designs, serial numbers, or barcodes need to be marked with precision.

  • Versatility in Material Compatibility

    Desktop laser markers are versatile and can mark various materials, including metals, plastics, glass, and ceramics. This versatility makes them suitable for a wide range of industries and applications, from jewellery engraving to part serialization in manufacturing

  • Consistent Marking Quality

    Flying laser marking machines maintain consistent marking quality across a range of products. The synchronized movement of the laser head with the conveyor ensures that markings are applied with precision and uniformity.

  • Long Service Life

    Quality handheld laser markers are built with durable components, providing a long service life and reliability for continuous use. This longevity is particularly beneficial in industrial settings where equipment is subjected to continuous use over extended periods

Specifications

Output Power:<=20W
Q Switch Frequency:20kHz - 200kHz
Laser Beam Quality:<1.2
Engraving Depth:<0.2mm
Gross Power:500W
Voltage:AC 220V/110V 5A
Laser Wavelength:1064nm
Working Area:100mm X 100mm
Repeatability:+/- 0.003
Engraving Speed:6000 - 10000 Ch/s
Min Line Width:0.01 mm
Marking Type Standard:Stationery
Marking Type Optional:Stationary | On Fly | Rotary
Cooling Method:Air Cooled
Cable Length:3 Meter Standard
Operating Temp:10 - 30 Deg
Humidity:20% - 80%
Output Power:<=30W
Q Switch Frequency:20kHz - 200kHz
Laser Beam Quality:<1.2
Engraving Depth:<0.3mm
Gross Power:550W
Voltage:AC 220V/110V 5A
Laser Wavelength:1064nm
Working Area:200mm X 200mm
Repeatability:-
Engraving Speed:-
Min Line Width:-
Marking Type Standard:-
Marking Type Optional:-
Cooling Method:-
Cable Length:-
Operating Temp:-
Humidity:-
Output Power:<=20W
Q Switch Frequency:20kHz - 200kHz
Laser Beam Quality:<1.5
Engraving Depth:<0.5mm
Gross Power:600W
Voltage:AC 220V/110V 5A
Laser Wavelength:1064nm
Working Area:300mm X 300mm
Repeatability:-
Engraving Speed:-
Min Line Width:-
Marking Type Standard:-
Marking Type Optional:-
Cooling Method:-
Cable Length:-
Operating Temp:-
Humidity:-

Applications

  • image
  • image
  • image
  • image

Use with Distinctive Material

video thumbnail
video thumbnail
video thumbnail
video thumbnail
video thumbnail
video thumbnail
video thumbnail
video thumbnail
video thumbnail
video thumbnail
video thumbnail

Desktop Laser Marking Machine delivers high-quality, permanent marks with precision and clarity. It combines high-speed marking with user-friendly software for quick setup and customization. With low maintenance and energy-efficient operation, it's a cost-effective solution for boosting productivity.
